HNSC-B-…-KO-DC
Function: The tilt switch HNSC-B-…-KO monitors rotationally symmetric tilt deviations from the vertical (Z-axis). If a tilt deviation from the Z-axis occurs that is greater than the defined ON monitoring range, the switch transitions to a high-resistance operating state (NORMALLY OPEN). The indicator LED of the switch signals the respective switching state. The tilt switch will only return to the low-resistance operating state when the tilt deviation falls below the defined switching point again.
Measuring range Z-axis:
Switching point Z-axis:
Accuracy:
Hysteresis:
Cut-off frequency:
Measuring principle:
-180°…+180°
according to customer specifications in the range between 30° and 150° tilt
+/- 2°
2° +/- 1°
1 Hz
MEMS
Housing material:
Dimensions:
Plastic
40 x 20 x 20 mm
Operating voltage UB:
Rated voltage:
Ripple:
Rated current:
Quiescent current:

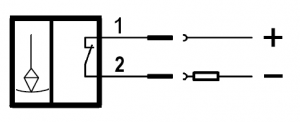

Switching output:
Voltage drop, static:
Connection:
Cable length:
9-30 VDC
24 VDC
< 15%
100 mA
approx. 500μA
Normally open (NC)
5V, max.
Cable with M12 connector, 4-pole, A-coded
2m
EU Directives:
.
Applicable standards:
2014/30/EU EMC Directive,
2011/65/EU RoHS Directive EN 61000-6-3:2007 + A1:2011/ AC:2012 (Emissions for residential, commercial, and light industrial environments),
EN 61000-6-2:2005 + AC:2005-09 (Immunity for industrial environments)
MTTFd:
Service life:
1691 years
20 years
The specification of the MTTF / service life value does not constitute binding quality and/or durability guarantees; it is merely based on experience without binding character.
These values do not extend or otherwise influence the limitation period for warranty claims.
